Name：H-D Printer
The System：Linux 3.4
Size：210*110*40mm
Material：Aluminum
Nozzle：TIJ Hot foaming nozzle
Information is stored：3GB
Screen Size：7 Inch capacitive screen
Spray printing precision：600 DPI
Count number：1~15 digits
Nature of the Ink：Dry,Wet,Oil
Spray printing speed：50m/min
The cartridge capacity：42ml
Print library：Synchronous machine library
Print distance：3~5mm
Comprehensive analysis of core product features
2.The operation is intelligent and responds quickly
• Linux operating system, full-screen touch response is fast
• One-click switching between multiple languages to meet different application requirements
• Built-in image adjustment function, supporting full-screen magnification to adjust information
2.The combination is flexible and the installation is convenient
• The detachable design of the body makes installation convenient

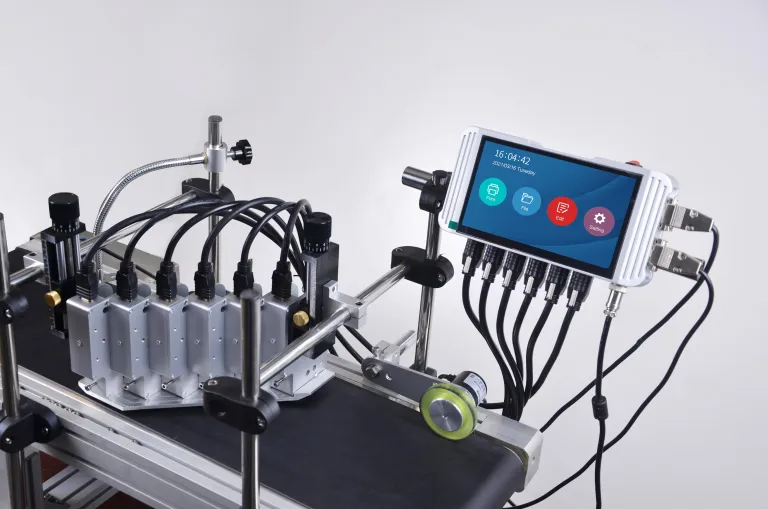

• Supports simultaneous printing with a combination of 6 nozzles
• Supports external hardware interfaces such as PLC, RS232, USB, and HDMI
3.The printing is clear and the effect is good
• One-click blackening of ink can solve the problem of unsatisfactory printing results
• Real-time printing of variable data and support for external data import
• The print head can rotate 360 degrees to achieve coding at any Angle
HD Printer Specification
|
| Name | H-D Printer | The System | Linux 3.4 |
| Size | 210*110*40mm | Material | Aluminum |
| Nozzle | TIJ Hot foaming nozzle | Information is stored | 3GB |
| Screen Size | 7 Inch capacitive screen | Spray printing precision | 600 DPI |
| Count number | 1~15 digits | Nature of the Ink | Dry,Wet,Oil |
| Spray printing speed | 50m/min | The cartridge capacity | 42ml |
| Print library | Synchronous machine library | Print distance | 3~5mm |
| Water-based ink color | Black,Red,Blue,Green,Yellow,Invisible Color |
| Quick drying ink color | Black,Red,Blue,Green,Yellow,White,Invisible Color |
| The external interface | Power,HOMI cable interface,USB interface |
| Using the environment | Temperature 0 to 40,10~80% humidity |
| Printing Height | 2-25.4mm(two print heads) |
| Adapter parameters | 100~240V AC input |
| Spray print type | TXT,Bar-code,logo,QR code |
| Printing material | Plate,carton,pipe,cable,metal,plastic,etc |
| Manipulation Language | Chinese,English,Russian,French,Spanish,Arabic,etc |
| Bar Code Type | Code 128,Code 39,Int25,UPCA,ENA 13,QR Code,Data Matrix |
