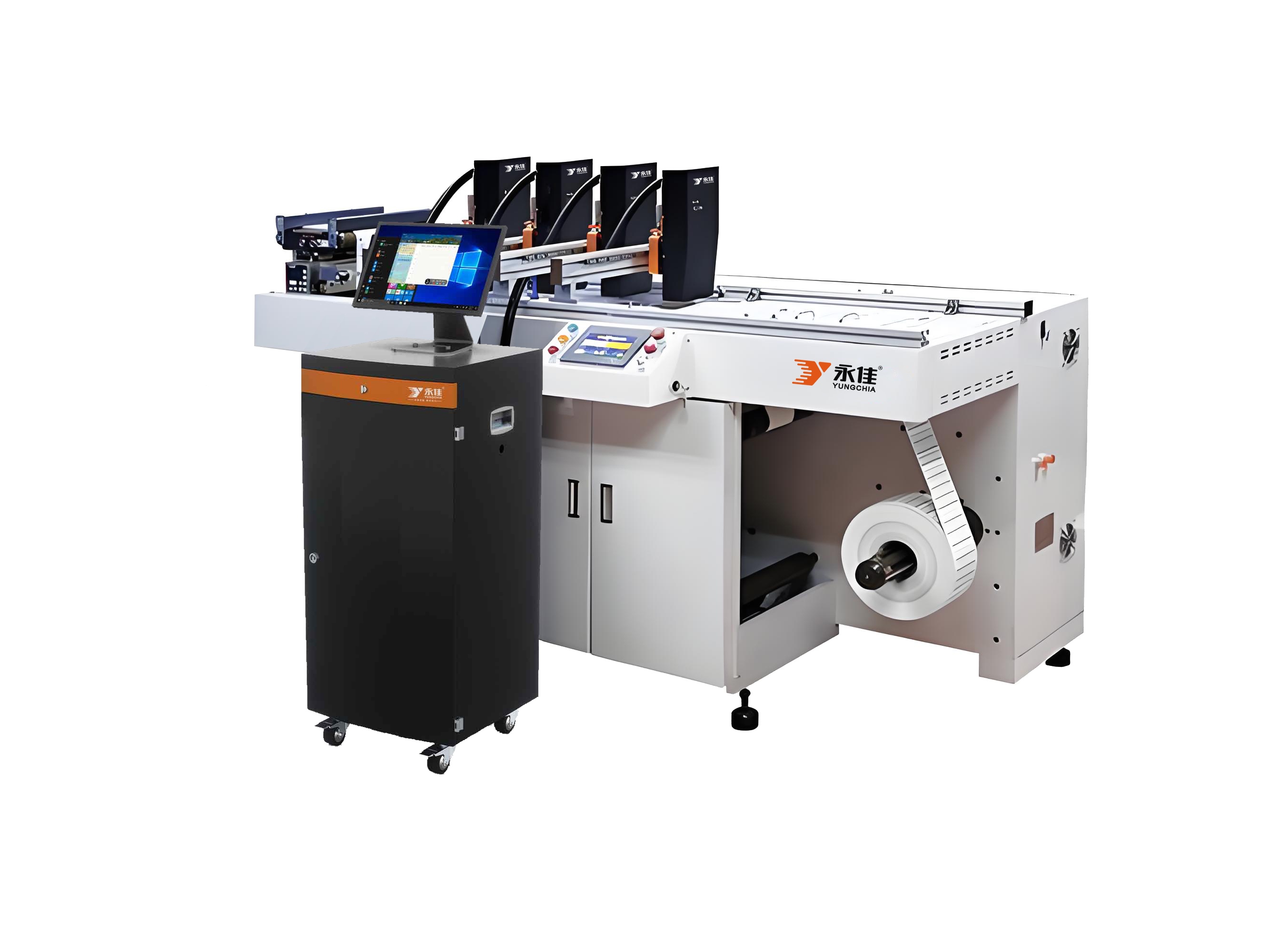

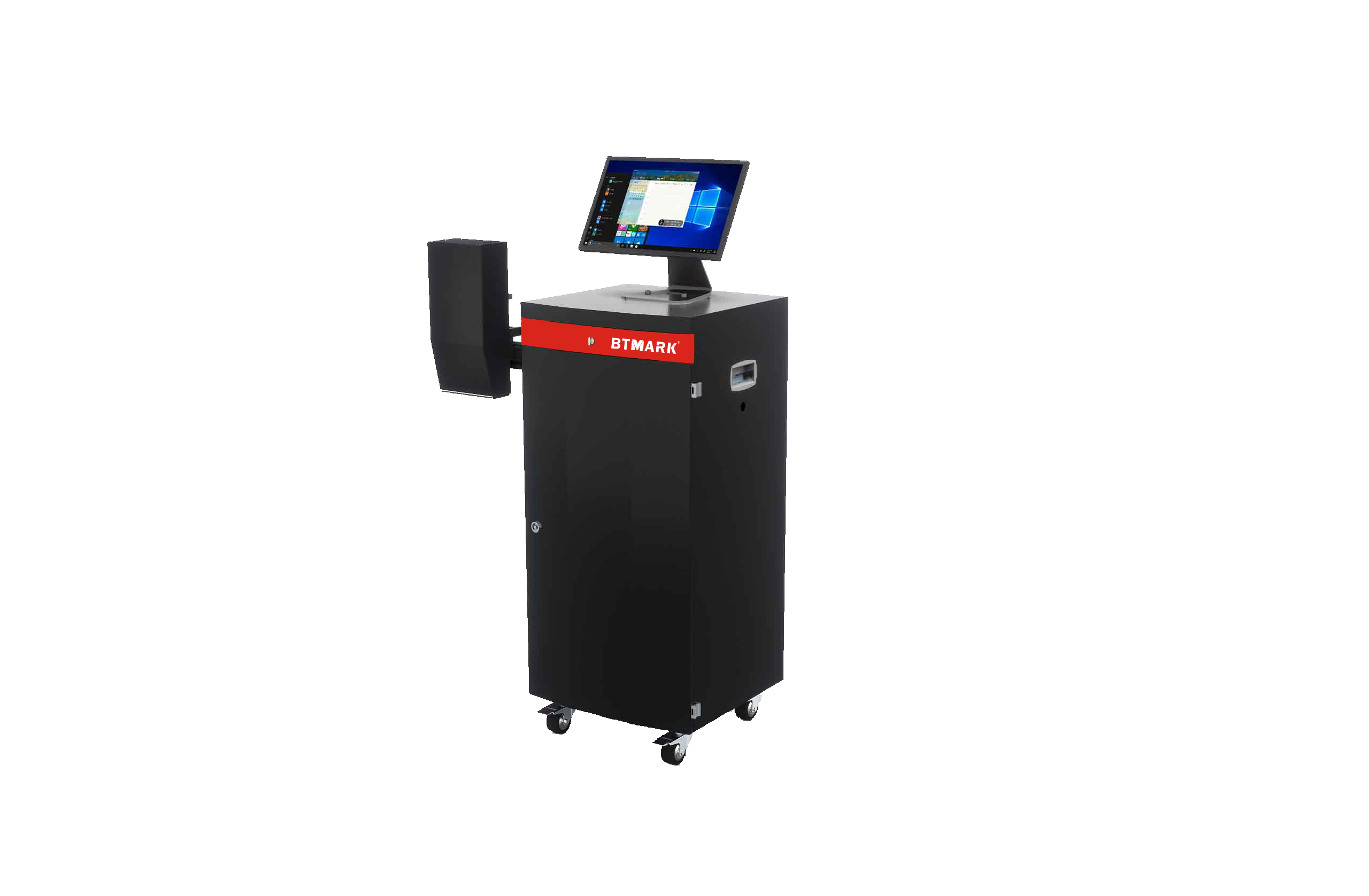

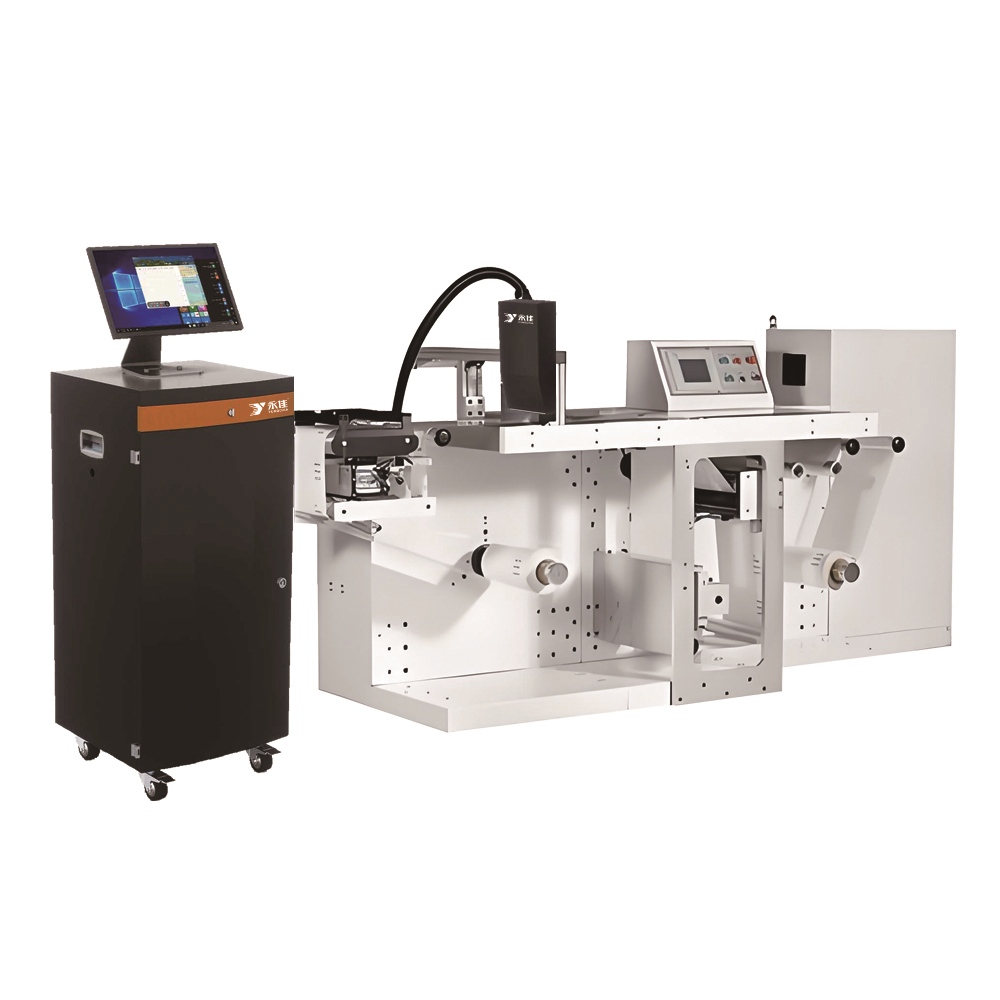

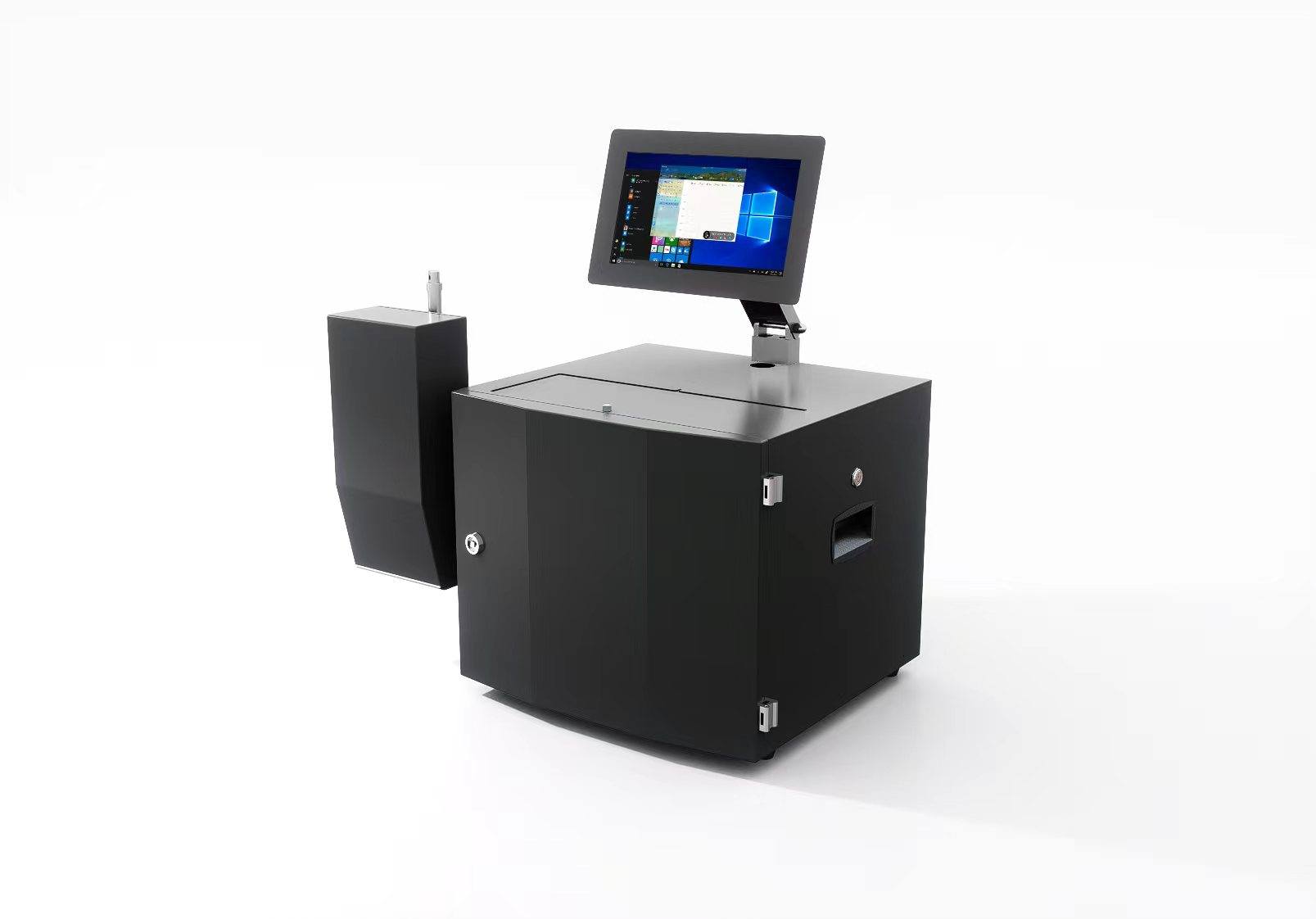

Model：Y4000/Y5000
Nozzle width：32mm/54mm
Nozzle type：High-precision piezoelectric nozzle
Nozzle accuracy：The lateral accuracy is adjustable from 200 to 2000dpi
Printing speed：0-150 meters per minute (determined by factors such as material, resolution, and environment)
The number of nozzles：1 to 4 heads
Printing distance：<5mm (optimal 1-3mm)
The intelligent control is stable and efficient
1.Equipped with a 13-inch touch screen, the operation is intuitive and convenient.
2.The control board card is designed in accordance with industrial-grade standards and operates stably and reliably.
3.Support the import of external files for printing and variable data printing to meet diverse production needs;
4.Equipped with an automatic and precise negative pressure ink path control system, it accurately controls the ink volume and ensures the consistency of printing.
High-definition printing and ultra-fast curing
1.With a high-definition resolution of 600DPI, the printing effect is clear and full.
2.The ink cures quickly and dries rapidly, perfectly matching high-speed production lines and enhancing production efficiency.
Multi-material compatible, low-carbon and easy to maintain
1.Suitable for surface printing on various materials, it is scratch-resistant and wear-resistant
2.Use eco-friendly ink to reduce consumable costs and environmental impact
3.The daily maintenance of the equipment is simple, reducing downtime
Technical parameters
| Model | Y4000 | Y5000 |
| Nozzle width | 32mm | 54mm |
| Nozzle type | High-precision piezoelectric nozzle |
| Nozzle accuracy | The lateral accuracy is adjustable from 200 to 2000dpi |
| Printing speed | 0-150 meters per minute (determined by factors such as material, resolution, and environment) |
| The number of nozzles | 1 to 4 heads |
| Printing distance | <5mm (optimal 1-3mm) |
| Printing content | text, numbers, graphics, variable data, one-dimensional codes, two-dimensional codes,
electronic supervision codes, anti-counterfeiting codes, databases, etc |
| Printing methods | single, continuous |
| Language | Chinese ,English |
| Interface type | USB，RJ-45 |
| Ink path control | Negative pressure ink path control, positive pressure ink path cleaning |
| Printing materials | plastic, metal, paper, wood, etc |
| Ink types | UV ink, oil-based ink, and water-based ink |
| Ink colors | black, white, yellow, red, blue |
| Equipment that can be carried | rewinding equipment, page separation platforms, assembly lines, printing machines, packaging equipment, etc |
| Curing type | LED-UV curing |
| Ink capacity | 1500ml |
| Case material | Q235 spray coating + industrial aluminum |
| Adapter parameters | 100-240V |
| Working environment | 5-50 degrees |
| Weight | 30kg |
